Přední švýcarský výrobce měřících systémů

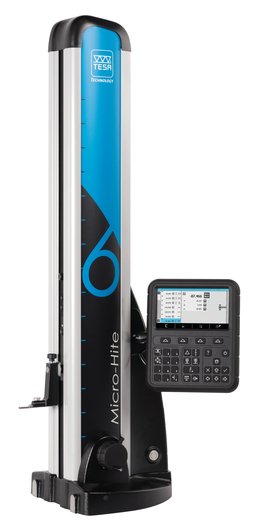

Manuální výškoměr MICRO-HITE

This high-end instrument is intuitive due to a clear and refined user philosophy of its embedded software and allows measurements in 1 or 2 coordinate directions. Universal machine developed for workshops and for laboratories that can be integrated as close as possible to the user. Indeed, the robustness of its cast iron base and frame makes it a reliable instrument that guarantees an excellent repeatability and precision in any kind of conditions. With the exception of the 1D basis functions, it is equipped with advanced functions (angle, programming, tolerancing, 2D, ...) and turns it into a metrological “multi-user” asset, that replaces the most conventional measuring tools. With the integrated patented QUICKCENTER technology, the height gauge gives clear indications not only when capturing simple points but it becomes a proven advantage for the determination of the culmination points. Each MICRO-HITE is delivered with a free calibration certificate SCS (Swiss Calibration Service) avoiding any additional extra cost due to a re-certification of the instrument directly after purchase.

• PANEL - Hybrid with colour touch screen and keyboard - Refined keyboard for easy handling without confusion - Adjustable support for optimal reading of the screen at any time • AUTONOMY - Rechargeable interchangeable battery - Infinite operative with a backup battery • MEASUREMENT - Patented QUICKCENTER technology integrated to efficiently determine the culmination points - Advanced functions for a multi-task instrument, accessible to all users - Context-based help to avoid incorrect use and bad results - Clear results to decrease possible errors due to bad interpretation of the displayed results • INSTRUMENT - Robust construction to ensure longevity and stability of results over time • DATA MANAGEMENT - Sending values to computer via TLC port Automatic creation of pdf reports or txt file on USB stick - Data printing via USB printer • SCS CALIBRATION CERTIFICATE - Free SCS Certificate supplied with purchase to avoid any additional extra costs for calibration of the instrument directly after purchase



Katalogové číslo Popis produktu
00730073 MICRO-HITE 350
00730074 MICRO-HITE 600
00730075 MICRO-HITE 900
00730076 MICRO-HITE 350 s jemným stavěním
00730077 MICRO-HITE 600 s jemným stavěním
00730078 MICRO-HITE 900 s jemným stavěním


Measuring force 1,6 ± 0,25 N
Units mm / in
Standard Factory standard
Resolution 0,0001 / 0,001 / 0,01 mm .00001 / .0001 / .001 in
Zero Fixed
Coefficient of linear expansion 11,5 x 10-6 K-1
Material Base and frame: cast iron
Weight Model 350: 33 kg Model 600: 37 kg Model 900: 45 kg
Power supply Power connection Rechargeable interchangeable battery
Function(s) Measuring probe can be manually displaced with a displacement wheel Air cushion system
Autonomy 8 hours (with a battery block) Infinite (with 2 battery blocks)
Included in delivery SCS calibration certificate Declaration of conformity
Data output(s) TLC, USB
